Making your own album 36

click the 'Documents' header to see previous entries
https://rainbowstampsandcoins.blogspot.com/search/label/documents

6.3     Page header en footer

Sometime we want to add some extra information, outside the border frame of our album.
Most of the time this is a page number, the title of the album or the chapter, …

It is important to know that once an album is generated, and printed, the page numbers will not change anymore.
If you add a page to your program code, you will have to print all pages after that specific page again, in order to keep the album correctly numbered.
Adding a blank page to your physical album, not programmed, will make your album having numbered and not-numbered pages.

Open Test Design 14 a or b and save it as Test Design 15.
All options to place text outside the border frame, are valid for the whole album, and therefore this information has to be placed in the Album-settings at the beginning of the programming process.

6.3.1     Gerneral possibilities

Older versions of AlbumEasy, had no specific codes for header or footer texts, and had to be specified whether the text had to be on top or at the bottom of the page. From version 4.2 on, all options can be used both on top or at the bottom of the page.  We only need to indicate where we want to place it.



ALBUM_PAGES_HEADER …. For the header-option
ALBUM_PAGES_FOOTER … For the footer-option

There are for each option, 4 variations :

…PAD
    Distance above frame on top or distance below frame at the bottom

…NUMBER

    Page number as cardinal number : page 1
    Page number as ordinal number : page 1 of 20

…DATE

    As YMD : Year, Month, Date (American style)
    As DMY : Day, Month, Year (European style)
    As MDY : Month, Day, Year (very confusing … 05 06 20, May 6 or June 5 ?)

…-no specification-

For texts

4 variations for 2 locations, means 8 different possibilities.

6.3.2     8 combinations :

ALBUM_PAGES_HEADER
    (font and size / position / “text”)

ALBUM_PAGES_HEADER_PAD

(distance above top frame line in mm)

ALBUM_PAGES_HEADER_NUMBER
    (font and size/ position [Start] [Text before] [Text behind])

ALBUM_PAGES_HEADER_DATE

(font and size / position / Format [Separator] [Text before] [Text behind])

ALBUM_PAGES_FOOTER

(font and size / position / “text”)

ALBUM_PAGES_FOOTER_PAD
    (distance below bottom frame line in mm)

ALBUM_PAGES_FOOTER_NUMBER

(font and size/ position [Start] [Text before] [Text behind])

ALBUM_PAGES_FOOTER_DATE
    (font and size / position / Format [Separator] [Text before] [Text behind])

Some examples will make it clear:

Here, the comment lines are placed before the actual command.

Copy-paste all codes below and put them under  the ALBUM_DEFINE_FONT -line
and above the PAGE_START command



# header, left on odd pages, right on even pages, followed by ‘header text’
ALBUM_PAGES_HEADER
(TN 10 C "header text")

# page numbers left on odd pages, right on even pages
# start numbering with 1, followed by ‘PAGE’ and no text behind it

ALBUM_PAGES_HEADER_NUMBER (HN 12 LR 1 "Page ")

# this command is executed 3 mm above the top frame border
ALBUM_PAGES_HEADER_PAD
(3.0)

# footer, left on odd pages, right on even pages, followed by ‘footer text’
ALBUM_PAGES_FOOTER
(TN 10 LR "footer text")

# a page number in the footer, and the total number of pages
# the code $PAGES$ replaces the total number of pages, the moment the document is generated

# page numbering starts with 1
ALBUM_PAGES_FOOTER_NUMBER
(HN 12 C 1 "Page " " of $PAGES$")

# a date (format :YMD) in the footer, right on odd pages, left on even pages

# the date is preceeded by : ‘made on:’ and not followed by any other text.
ALBUM_PAGES_FOOTER_DATE
(HN 10 RL YMD "." "made on: ")

# this command is executed 5mm underneath the bottom frame line
ALBUM_PAGES_FOOTER_PAD
(5.0)

Generate the PDF

REMARK : each of the commands above can only occupy one place (left, centre, or middle) in other words, you can’t put two commands on the same spot.

POSITIONS:

C : centered
L : left
R : right
RL : right on odd pages, left on even pages
LR : left on odd pages, right on even pages

It is possible to combine L or C and R
LR and LR can be combined as they will not generate conficts
L and LR or R and RL on the same line is not possible,
also multiple L or R or C’s on the same line, will not work.

Some headers :

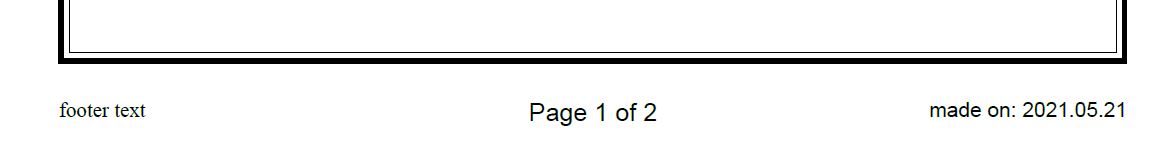

Some footers :





to be continued ...

previous part : https://rainbowstampsandcoins.blogspot.com/2021/05/making-your-own-album-35.html
next part : https://rainbowstampsandcoins.blogspot.com/2021/05/making-your-own-album-37.html
